FH Series Variable Frequency Chemical Diaphragm Vacuum Pump

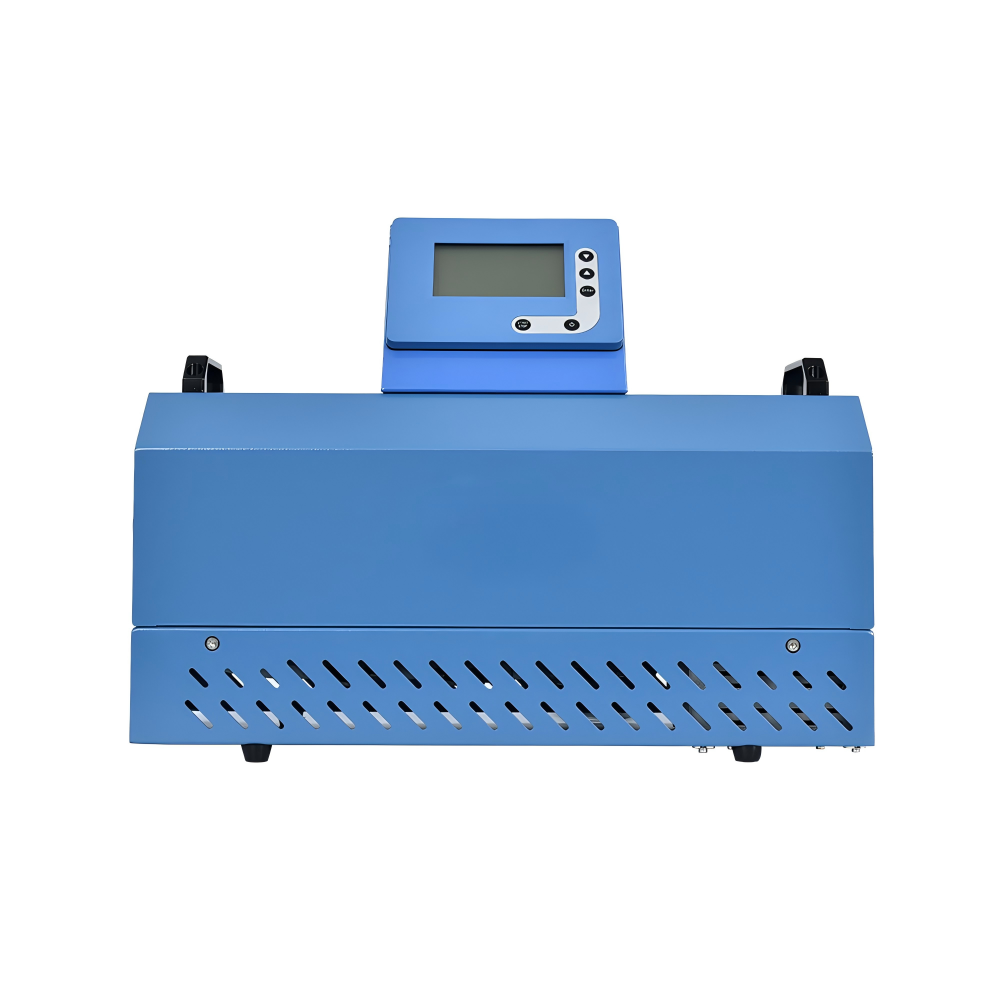

Controller for FH Series Variable Frequency Chemical Diaphragm Vacuum Pump
Diaphragm gauge for FH Series Variable Frequency Chemical Diaphragm Vacuum Pump
  • Load image into Gallery viewer, FH Series Variable Frequency Chemical Diaphragm Vacuum Pump
  • Load image into Gallery viewer, Controller for FH Series Variable Frequency Chemical Diaphragm Vacuum Pump
  • Load image into Gallery viewer, Diaphragm gauge for FH Series Variable Frequency Chemical Diaphragm Vacuum Pump

FH Series Variable Frequency Chemical Diaphragm Vacuum Pump

Doctor Pump Limited
Sold out
Shipping calculated at checkout.
Model FH-20C-PR FH-20C FH-15C FH-12C FH-4C FH-8ME
Max capacity
(m³/h)		 18.3 21.5 18.3 14.3 4.6 8.1
Max vacuum (mbar) 2 3 2 3 3 70
Pump head/pole 10/3 12/3 10/3 8/3 4/3 4/1
Rated motor power (W) 1100 1100 1100 750 550 550
Motor speed (rpm) 30-2400 30-2400 30-2400 30-2400 30-2400 30-2400
Noise dB(A) 50 55 50 50 50 50
Pressure range (mbar) 0-1080 0-1080 0-1080 0-1080 0-1080 0-1080
Inlet KF 25 KF 25 KF 25 KF 25 Hose nozzle connector DN8 KF 16
Outlet Hose nozzle with an inner diameter of 5/8″ G1/2″ Hose nozzle with an inner diameter of 5/8″ G1/2″ Hose nozzle connector DN8 G1/4″
Communication TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP
Weight (kg) 34.5 36 34.5 28 16.3 18
