ZBW16-40K Dry Rotary Vane Vacuum Pump
ZBW60E-140E Dry Rotary Vane Vacuum Pump
ZBW200-250E Dry Rotary Vane Vacuum Pump
ZBW300-360E Dry Rotary Vane Vacuum Pump
  • Load image into Gallery viewer, ZBW16-40K Dry Rotary Vane Vacuum Pump
  • Load image into Gallery viewer, ZBW60E-140E Dry Rotary Vane Vacuum Pump
  • Load image into Gallery viewer, ZBW200-250E Dry Rotary Vane Vacuum Pump
  • Load image into Gallery viewer, ZBW300-360E Dry Rotary Vane Vacuum Pump

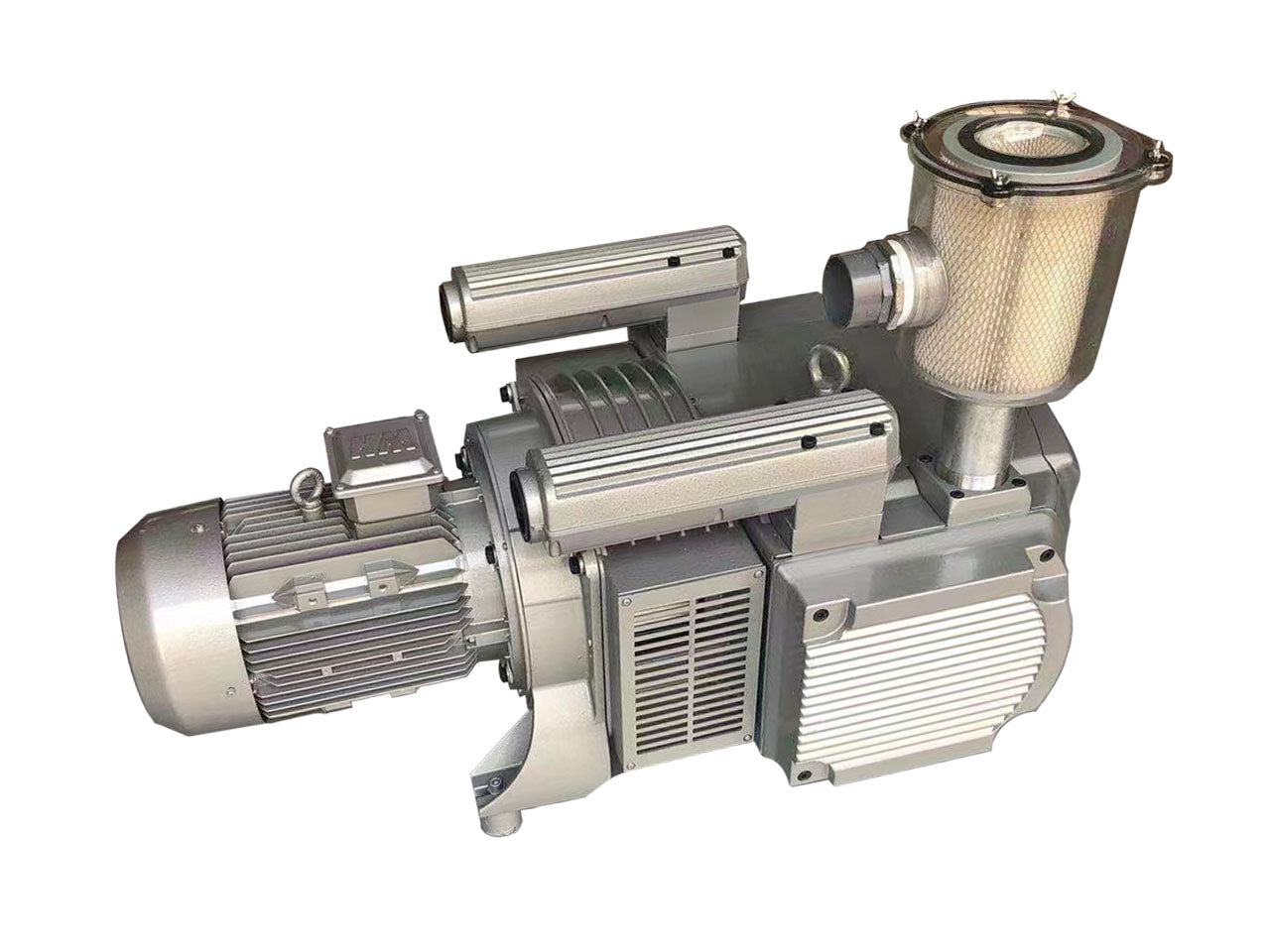

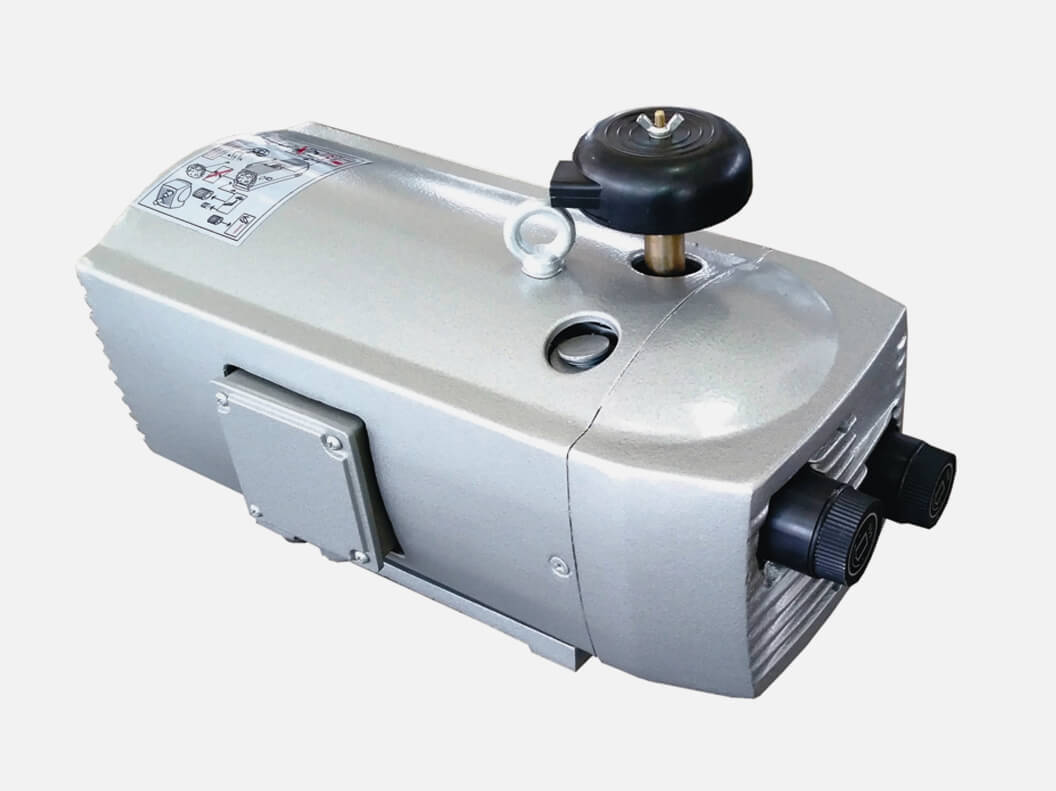

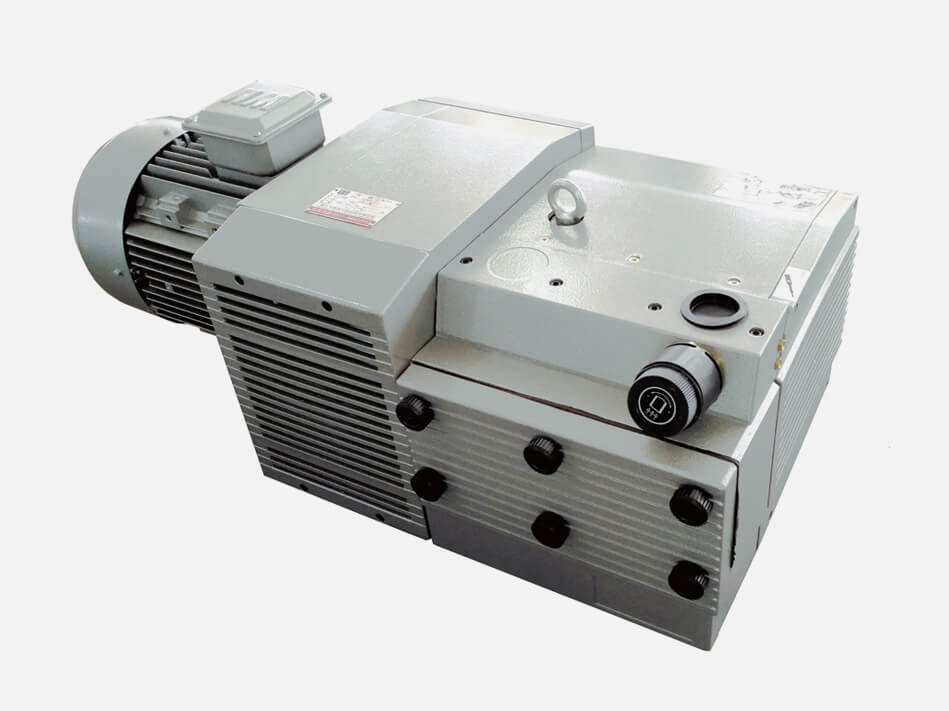

ZBW Series Dry Rotary Vane Vacuum Pumps

Doctor Pump Limited
Sold out
Shipping calculated at checkout.

ZBW Series Dry Rotary Vane Vacuum Pumps Features

Low noise

Low temperature rise

Stable performance

Easy maintenance



ZBW Series Dry Rotary Vane Vacuum Pumps Application

Printing

Packaging

Electronics

Tobacco

CD/Tape production

Semiconductor (LCD) production

Wood working machinery

Food processing



2BW Series Dry Rotary Vane Vacuum Pumps Specifications

Model Air Flow
(m³/h)		 Power
(kw)		 Voltage
(3phase)		 Speed
(rpm)		 Vacuum  Noise
dB(A)		 Weight
(kg)
50HZ 60HZ 50HZ 60HZ 50HZ 60HZ 50HZ 60HZ 50HZ 60HZ
ZBW16K 16 19.2 0.75 0.9 230/400V 230/400V 1420 1700 91 mbar 61 64 22
ZBW25K 25 30 1.1 1.5 220/380V 220/380V 1420 1700 91 mbar 62 67 28
ZBW40K 40 48 1.85 2.2 220/380V 220/380V 1420 1700 91 mbar 70 72 55
ZBW60E 60 72 2.2 2.6 220/380V 220/380V 1420 1700 93 kpa 71 73 85
ZBW80E 80 96 2.2 2.6 220/380V 220/380V 1420 1700 93 kpa 72 75 85
ZBW100E 100 120 3 3.6 220/380V 220/380V 1420 1700 93 kpa 75 77 130
ZBW140E 140 168 4 4.8 220/380V 220/380V 1420 1700 93 kpa 76 79 140
ZBW200E 178 218 5.5 6.6 960 1150 200 mbar 75 77 258
ZBW250E 250 300 5.5 6.6 960 1150 200 mbar 81 81 280
ZBW360E 351 - 11 - 1430 - 200 mbar 80.5 80.5 312
